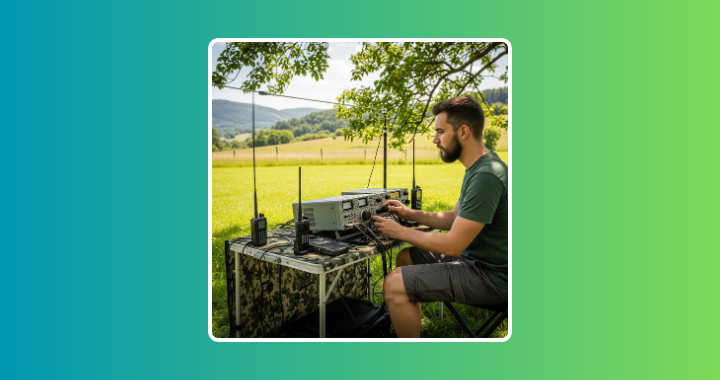

Welcome to the heart of amateur radio communication! At this station, you’re witnessing the fusion of tradition and cutting-edge technology: Morse Code (CW) and various digital modes.
What You’re Seeing and Hearing:
- The Art of CW: You’ll see operators skillfully using a “key” to send messages through a series of “dits” (short tones) and “dahs” (long tones). This isn’t just sending dots and dashes; it’s a unique language, a rhythmic art form that connects operators across the globe. Listen closely – you might hear the distinct “dit-dah-dit-dit” of an “F” or the “dah-dah-dah” of an “O”!
- The Future of Digital: Beyond the classic sounds of CW, this station is also operating in modern digital modes. These modes use computers to encode and decode messages, often allowing for robust communication even under challenging radio conditions. You might see computer screens displaying rapidly scrolling text as messages are exchanged.
Meet Our Station Captain:
- Carl Jackson (wb4aby@nfarl.org)
They are experienced operators dedicated to making contacts and sharing the excitement of CW and digital modes. Please observe their operations quietly and respectfully.
CW: The Original Digital Mode
Before computers, CW was the original “digital” communication. Each character is represented by a unique binary code of dits and dahs. This efficiency means that CW can be decoded even when signals are very weak, making it ideal for long-distance (DX) contacts.
A Glimpse into History:
Did you know that the very first practical radio transmissions by Guglielmo Marconi in 1894-1895 used radiotelegraphy – essentially, sending CW over radio waves? It’s a testament to the enduring power and efficiency of Morse Code that it remains a vital part of amateur radio today, well over a century later. Many hams find it a deeply rewarding skill to learn and master.
How it Works (Simplified):
- Your Operator: Our skilled operator uses a hand key or a specialized electronic keyer to generate precise sequences of “dits” and “dahs.”
- The Transmitter: These electrical pulses are fed into the radio transmitter, which converts them into a pure tone signal (Continuous Wave).
- The Antenna: The radio output is then sent to our 80-meter antenna. This antenna is specifically designed to efficiently radiate radio waves at frequencies around 3.5 to 4.0 MHz, which are part of the 80-meter amateur radio band.
- Through the Atmosphere: These radio waves travel through the Earth’s atmosphere, bouncing off the ionosphere (a layer of charged particles) and allowing signals to travel vast distances, often across continents.
- The Receiver: A distant amateur radio operator’s antenna captures these radio waves, and their receiver converts them back into audible dits and dahs or decodes the digital signal into text.
Let’s break down some common terms you might encounter in the world of amateur radio, especially when dealing with Morse code and radio communication:
-
Dits and Dahs: These are the fundamental building blocks of Morse code.
- A dit is a short tone or click, like a quick “dot.”
- A dah is a longer tone, typically three times the length of a dit, like a “dash.”
- Think of them as the “ones” and “zeros” of Morse code, combined in specific patterns to represent letters, numbers, and punctuation. For example, the letter “A” is dit-dah (·–), and the letter “N” is dah-dit (–·).
-
Key: In the context of Morse code, a “key” isn’t something you unlock a door with. It’s a mechanical or electronic device that an operator presses to send Morse code signals. When you press the key, it closes a circuit, sending a signal to the radio transmitter, which then generates the dits and dahs. There are different types, from simple straight keys to more complex electronic paddles.
-
Prosigns (Procedural Signals): These are special, shorthand Morse code signals that represent common phrases or operational instructions. They’re designed to make communication more efficient and standardized. Prosigns are often sent as a single, unbroken string of dits and dahs, even though they represent multiple letters.
- Examples include:
- AR (): End of message.
- K (): Invitation to transmit (over to you).
- SK (): End of contact.
- DE (): “From” or “this is” (e.g., “DE W1AW” means “This is W1AW”).
- Examples include:
-
DX (Distance): This is a common term in amateur radio that simply means “distance.” When hams talk about “working DX,” they are referring to making contact with other amateur radio operators in far-off or foreign countries. It’s a popular aspect of the hobby, as it involves utilizing radio propagation phenomena to achieve long-distance communication.
-
Ionosphere: This is a region of Earth’s upper atmosphere, roughly between 60 and 1,000 kilometers (37 to 621 miles) above the surface, where atoms and molecules are ionized (meaning they’ve gained or lost electrons) by solar radiation. The ionosphere is crucial for long-distance radio communication because it can reflect radio waves back to Earth, allowing signals to travel far beyond the line of sight. The characteristics of the ionosphere change throughout the day and with solar activity, which affects how well radio signals propagate.
Why CW and Digital for Field Day?
- Efficiency: Both CW and many digital modes are highly efficient, allowing operators to make contacts even with lower power or in noisy conditions. This is crucial for Field Day, where we are often operating away from prime electrical infrastructure.
- Contest Ready: These modes are exceptionally well-suited for the rapid exchange of information required during contests like Field Day.
- Community: For many, CW is more than just a mode; it’s a connection to a rich history and a global community of enthusiasts. Digital modes represent the continuous innovation within our hobby.
Want to Learn More?
Many NFARL members are passionate about CW and digital modes and would be happy to share their knowledge. If you’re interested in learning Morse Code, there are many resources available, from online trainers to local classes. Ask an NFARL member how you can get started!
Enjoy your visit to the NFARL Field Day operations!
